Roof Sheet Roll Forming Machine (30m/min)

Roof Sheet Roll Forming Machine (30m/min)

Novotek high speed steel roof tile sheet is the new substitutes for traditional clayey, concrete tiles. By using fly cut, the machine speed can up to 30-40m/min including cut.

They are popular because of their low cost, short building period; re-cycle use, and elegant appearance. They can be used as the roof of villas, luxury houses, theatres, exhibition centers.

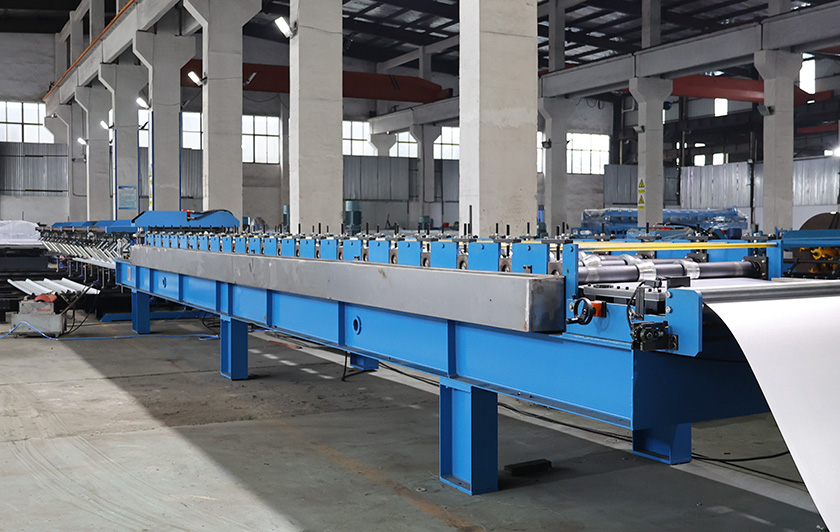

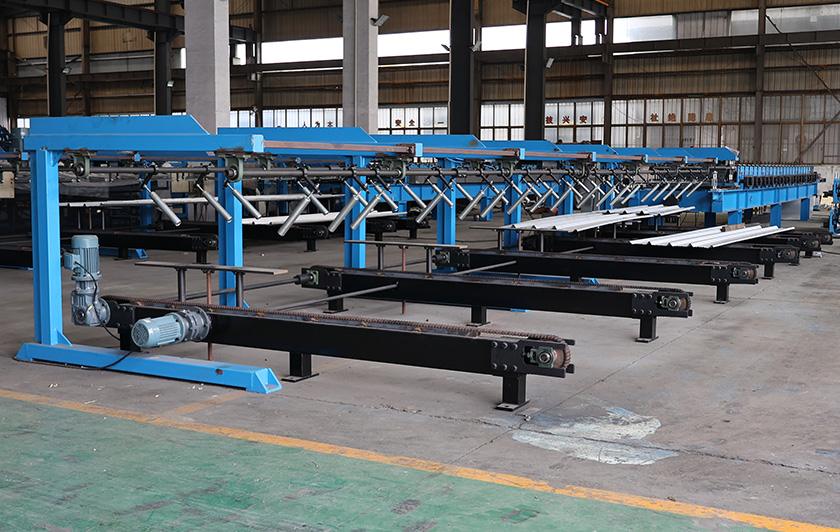

Main Machine of Roof Sheet Steel  Machine

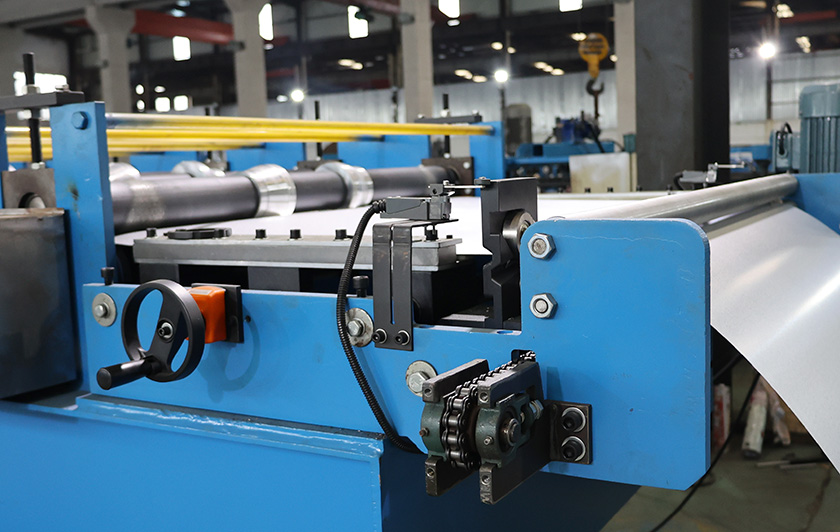

  1. Roll stand: 16 stations, it includes leveling rollers, main forming rollers

  2. Main motor power: 5.5KW, it adopts cycloid cone pulley reducer, chain or gearbox transmission

  3. Material of the roller: 45# high grade steel, chromeplate

  4. The roller processed by CNC machine with finish machining. The surface adopt finished polishing, the roughness is 0.05mm

  5. Material of the main shaft: 45# forged steel with heat treatment

  6. The diameter of the main shaft: Φ70mm

  7. Machine frame: welding by 350 x 175mm H shape steel, by using carbon dioxide gas arc welding. The surface used shot blasting treatment.

Electric Control System of Roof Sheet Tile Machine

  1. Control system: PLC (OMRON or MITSUBISHI brand)

  2. Operation platform: touch screen and press button

  3. Main motor: AC frequency conversion electric motor

  4. Inverter (HOLIP brand), Touch panel (WEINVIEW or MITSUBISHI brand), low voltage electric parts (CHINT brand)



Technical Parameters of Roof Sheet Machine
Item Parameters
Coil thickness (mm) 0.3-0.7
Roll stand 16
Main power (Kw) 5.5
Main shaft (mm) Ø70
Cutter material Cr12
Cutting accuracy 10±2mm
Hydraulic station power (Kw) 4
Control system PLC
Main machine dimension (mm) 8500 x 1000 x 80
