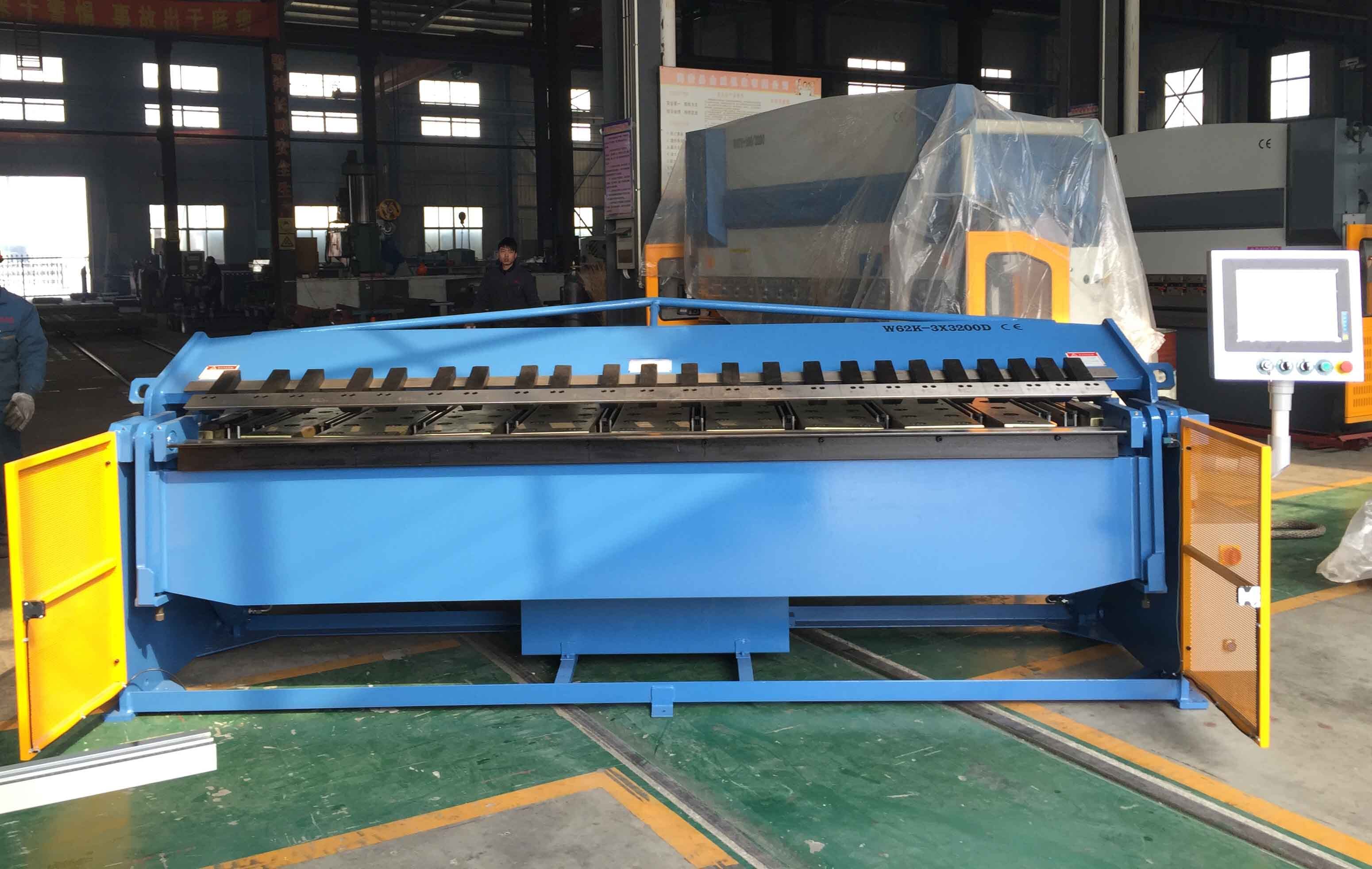

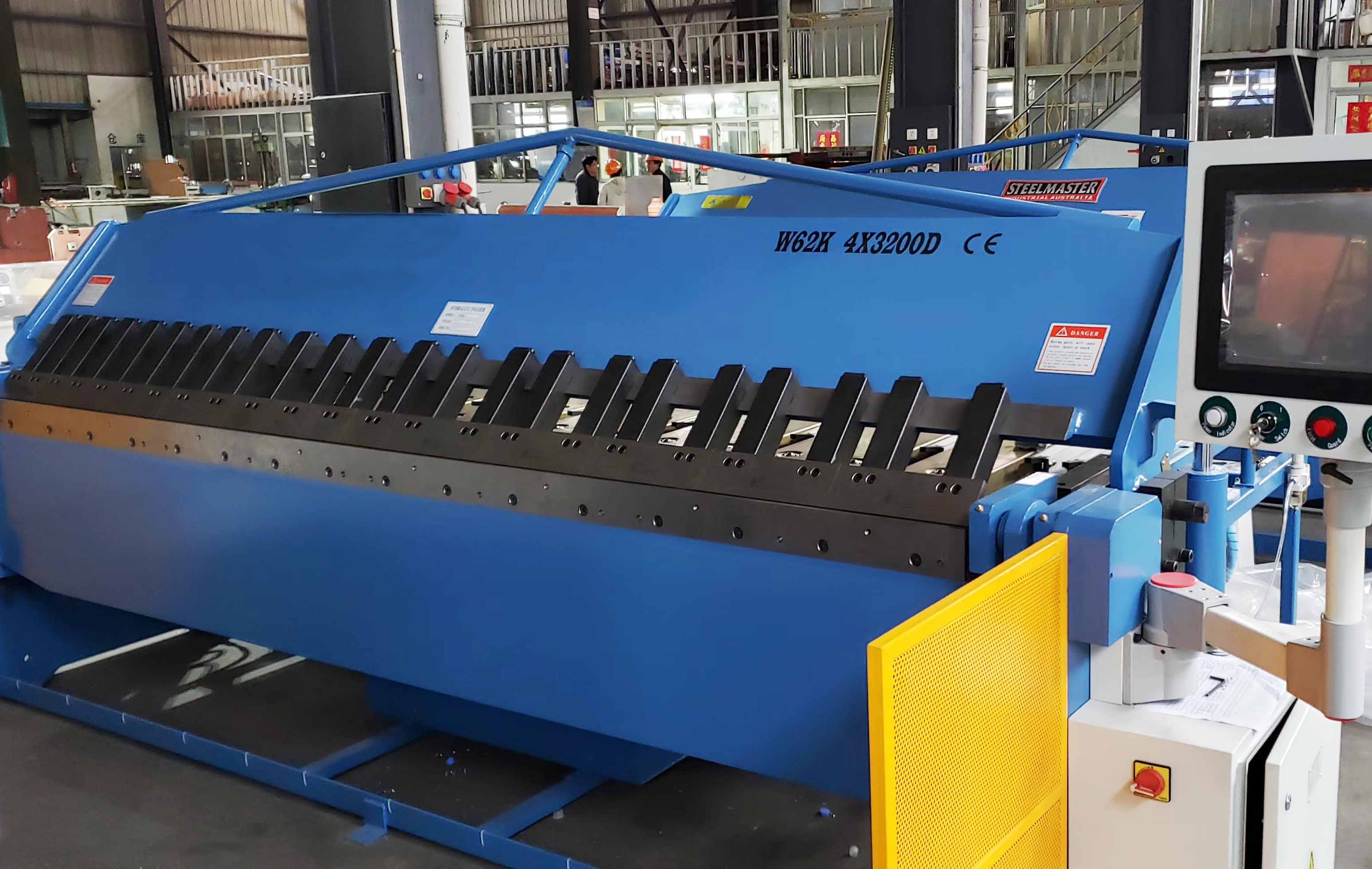

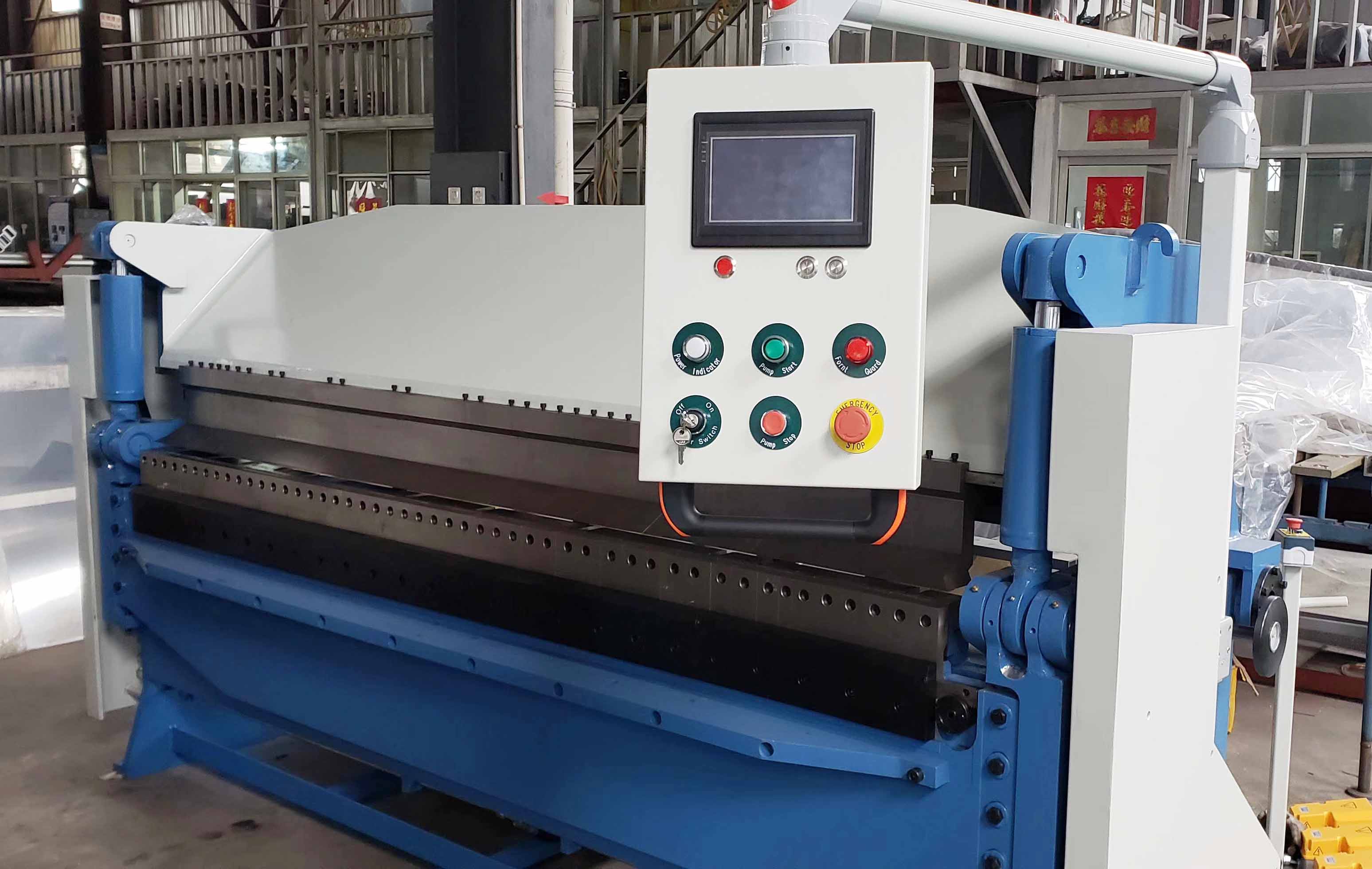

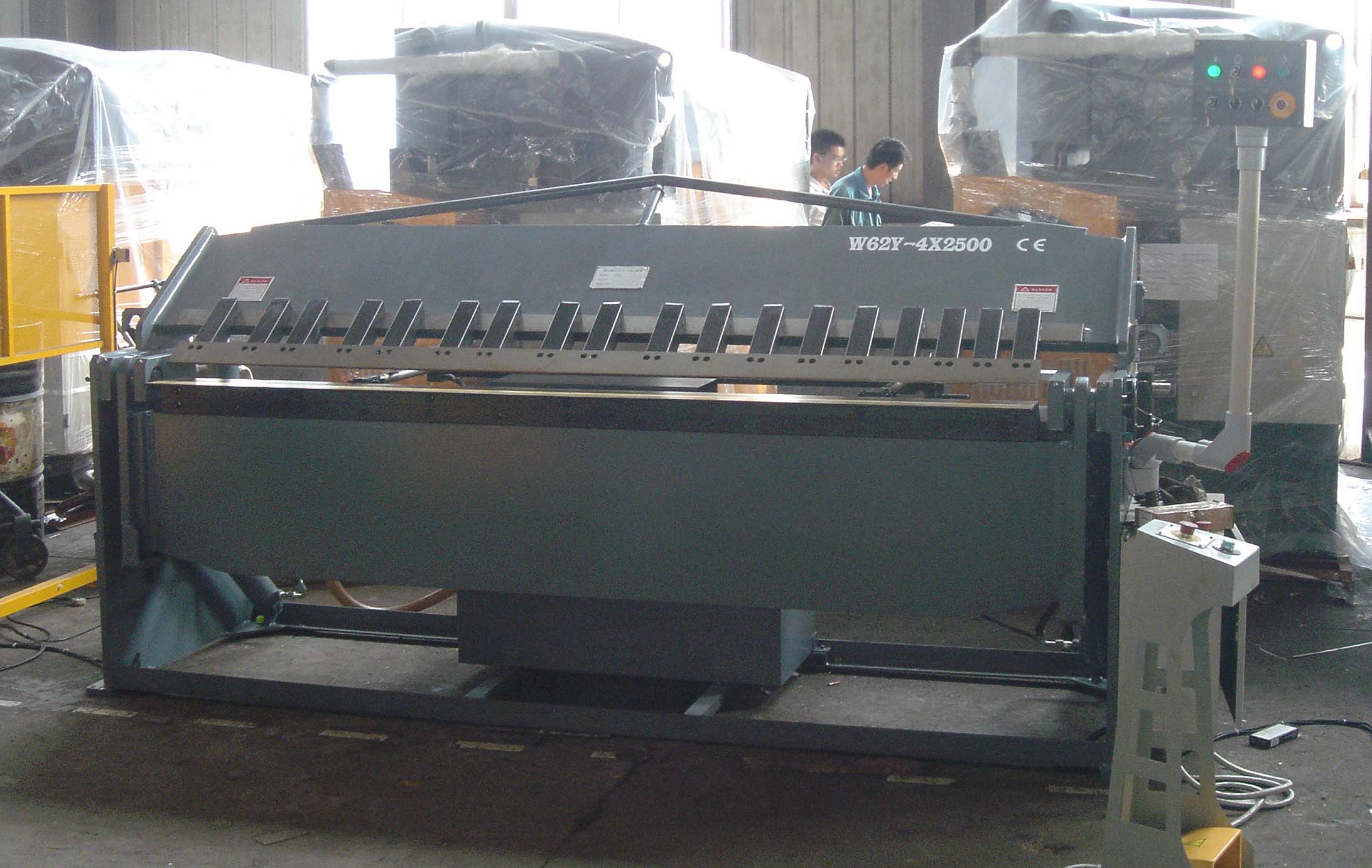

Hydraulic Folding Machine
Welded steel structure and vibratory stress relief, so the precision is well maintained.
The machine adopts hydraulic driving, with low energy consumption, long use life and easy maintenance.

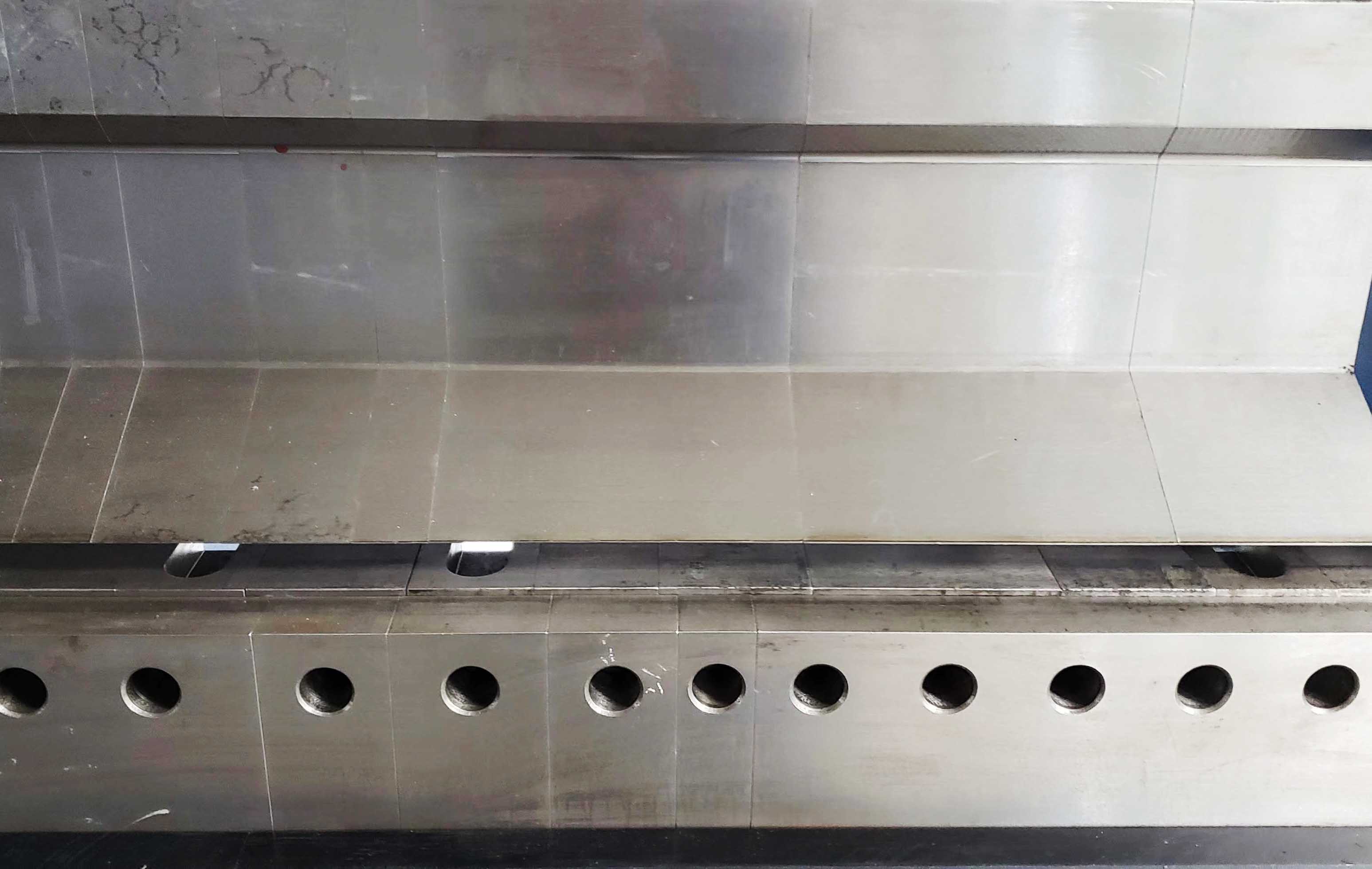

Divided upper die can be used in the production of disk and box, and the Max. Open height is 110mm.
Adopt high precision pentahedron CNC center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.
Specification
|
Name |
Data |
Unit |
|
|
Max. bending thickness |
3 |
mm |
|
|
Max. bending width |
4000 |
mm |
|
|
Bending angel |
120° |
|
|
|
Max. distance between pressing beam and working table |
110 |
mm |
|
|
Main motor |
Model |
Y112M-4 |
|
|
Power |
4 |
kW |
|
|
Oil pump |
Model |
PVL1-28 |
|
|
Volume |
28 |
L/r |
|
|
Pressure |
21 |
Mpa |
|
|
Size |
Length |
4900 |
mm |
|
Width |
1640 |
mm |
|
|
Height |
1650 |
mm |
|
|
Wight |
6100 |
kgs |
|
