PGC/ PGU Purlin Roll Forming Machine

PGC/ PGU Purlin Roll Forming Machine

Developed by NOVOTEK, the Perfil C/ Perfil U Purlin Machine is used to produce C Perfil/ U Perfil from 0.9mm to 2.0mm, with slot punch 100 x 38mm. It is is widely used in Uruguay, Argentina, Chile, Mexico, Brazil, Paraguay, Peru, Columbia, USA, Canada, etc Latin America, North America market.

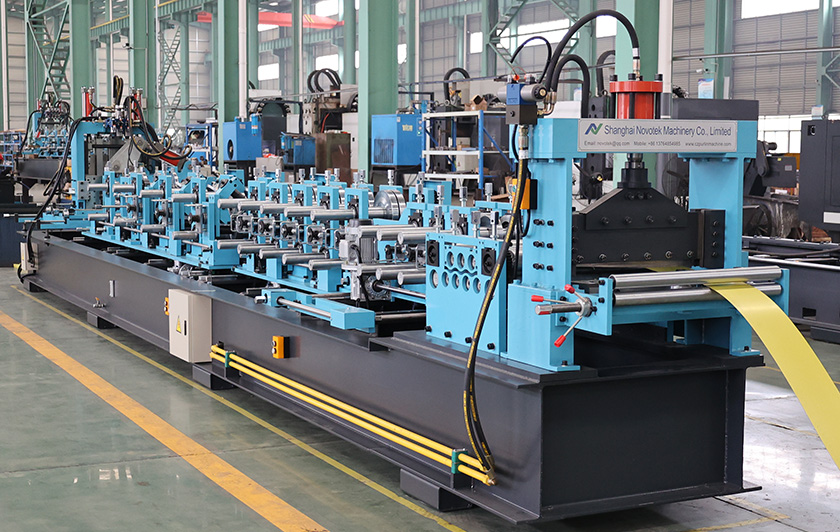

Automatic C U Purlin Machine (NTK-CU-300)

Introduction:

The machine can produce both C purlin and U purlin with various sizes, the size adjustment is controlled by PLC and fully automatic. Also we have standard NTK-CZ-300A fully automatic CZ purlin machine and NTK-CZ-300 semi automatic C/Z profile make machine.

  1. Raw material: galvanized sheet, black sheet; 0.9-2.0mm

  2. Product size: C Purlin 80-300mm & U Purlin 80-300mm (also we have NTK-CZ-400 available)

  3. Machine speed: Max. 30 m/min (by servo motor driven)

Lipped Channel Purlin Roll Forming Machine of NTK-CU-200 Main Components :

Uncoiler

  1. Type: Mechanical Uncoiler, Hydraulic Uncoiler

  2. Load capacity: 6T

Main Machine

  1. Roller material: GCr15 with heat treatment, polishing and galvanizing.

  2. Main motor: hydraulic motor or servo motor drive

  3. Size Change: size change controlled by PLC and set through touch panel, continuously adjustable.

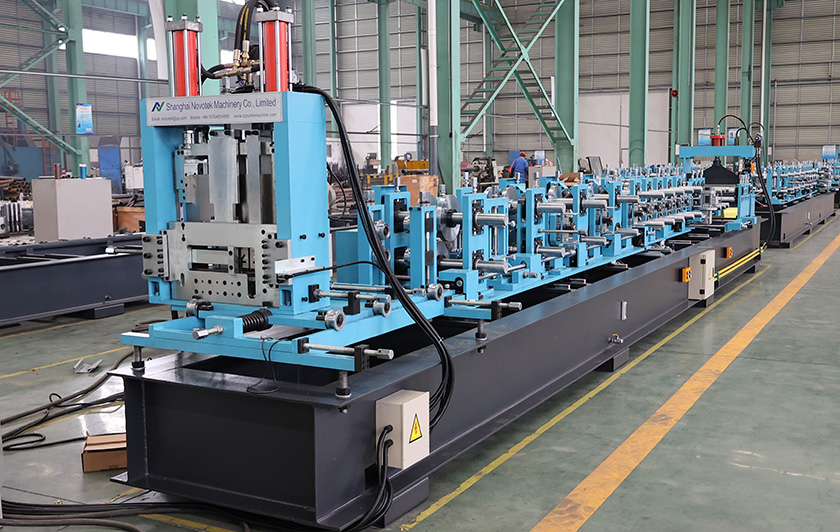

Hydraulic Punching & Universal Cutting System

  1. Punching unit: 1 set, slot: 100x 38mm

  2. Universal cutters for all purlin sizes.

  3. Cutting length, cutting pieces, and punching are controlled by PLC.

As the leading and biggest C Z Purlin Roll Forming Machine manufacturer in China, on average we have delivered 180-200 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.

Specification

Technical Specification of NTK-CU-200 PGC/ PGU Purlin Making Machine

Raw Material Type Galvanized Sheet, Black Sheet
Thickness 0.9-3.0mm

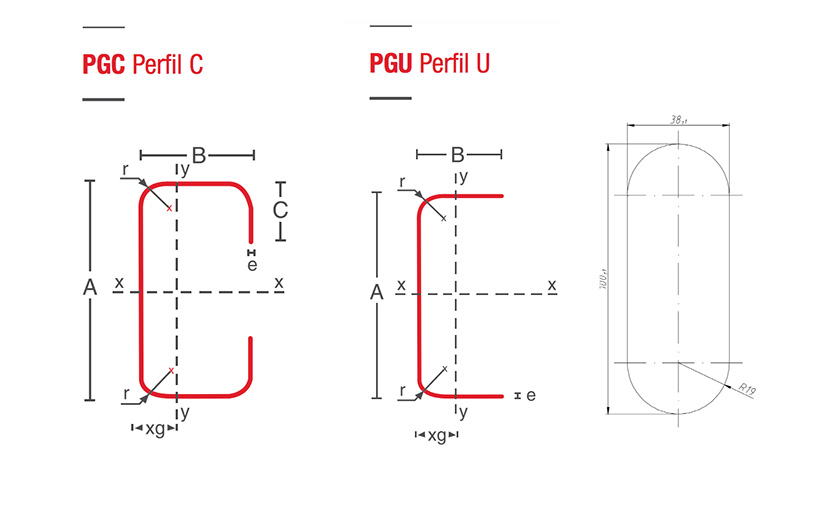

C Purlin Size Web x Flange x Lip 80-300/ 30-80/ 10-20
U Purlin Size Web x Flange x Lip 100-300/ 30-80

Performance

Speed Max. 30m/min (by servo motor driven)
C & U Change Fully Automatic
Size Change  By PLC, Fully Automatic
Uncoiler Type  Mechanical or Hydraulic
Capacity 6 T

Main Machine

Main Roller Station 18
Main Drive Hydraulic Motor or Servo Motor
Transmission Type Chain

Punching & Cutting

Punching Location Web
Punching Unit 100 x 38mm
Cutter Type Universal Cutter
