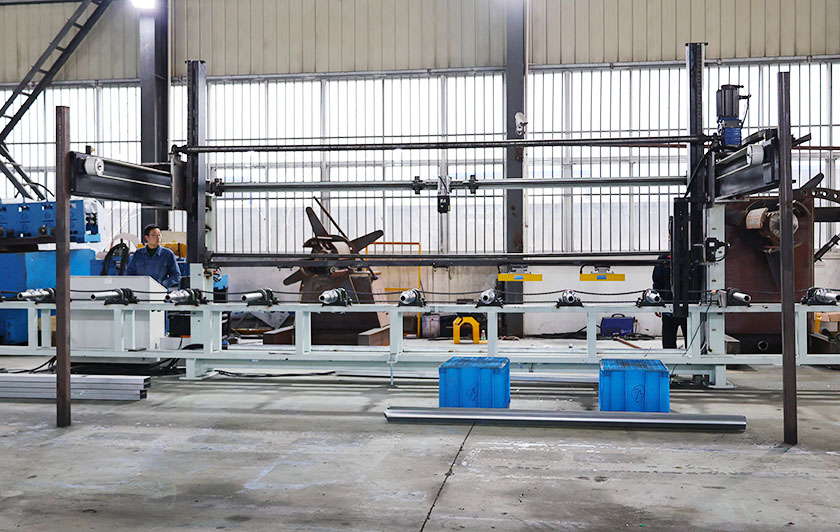

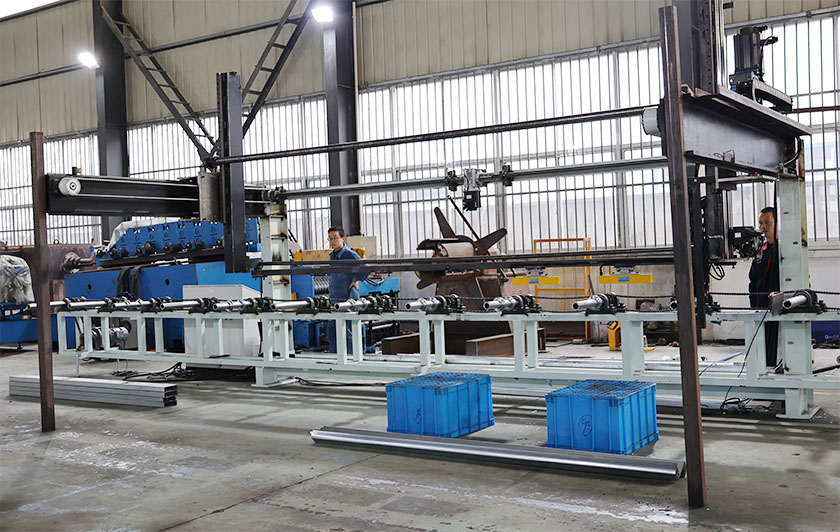

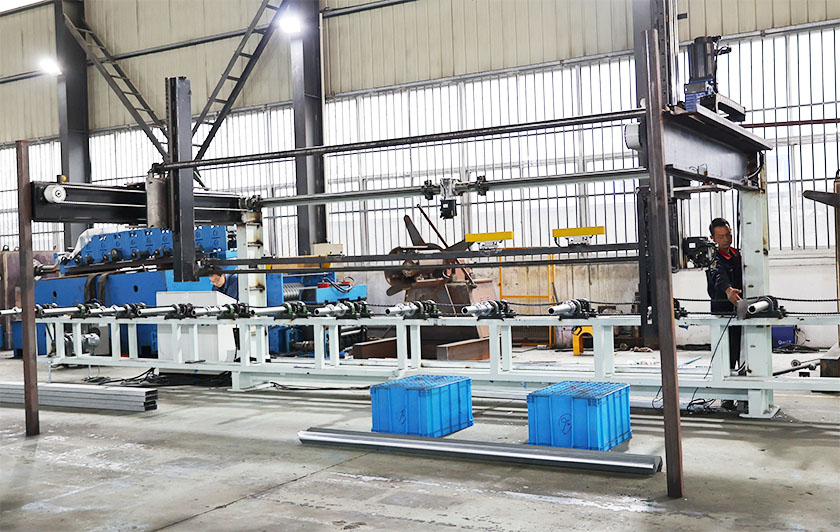

CZ Purlin Stacking Machine

​​CZ Purlin Stacking Machine

Purlin Specification

1. Purlin type: cold rolled, galvanized CUZ purlin
2. CU purlin width: 70-300mm
3. Purlin thickness: 1.5-3.0mm
4. Purlin length: 2000-12000mm

Machine General Specification

1. Machine structure: welding tubes
2. Total power about: 9.5 Kw
3. Power supply: 380V/ 50HZ/ 3Ph
4. Covering all moving parts (safety cover)
5. Easy to use operator panel (to easy control the stack size and dimensions)
6. CE marked – machine
7. Safety fences painted yellow as standard (Ral 1018)
8. Body colors RAL 5015

 Layout
