Strut Profile Roll Forming Machine

Struct Channel (Solar Panel Support) Roll Forming Machine

Strut Channel made by NOVOTEK Roll Forming Machine is a cold roll formed steel Channel that used as solar panel support or constructions for structural purpose. The channel is formed from metal coil strips, and then roll formed by struct channel roll forming machine into an open channel section with lips to provide additional stiffness.

NOVOTEK Strut Channel Machine is to form 1.5mm-2.5mm strut channels with required types. The machine is able to produce 2 or 3 or more types of strut channel by adjust the roll forming mould.The standard strut channel sizes are: 41*41, 41*21, and also some customized shapes.

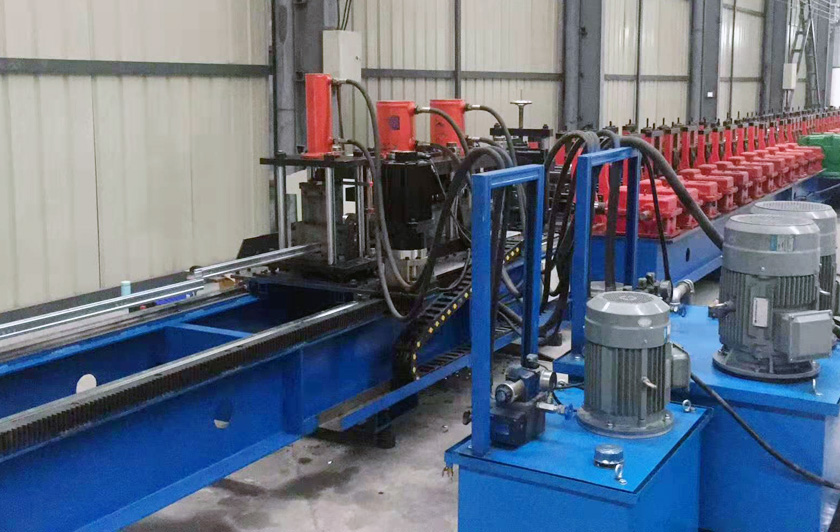

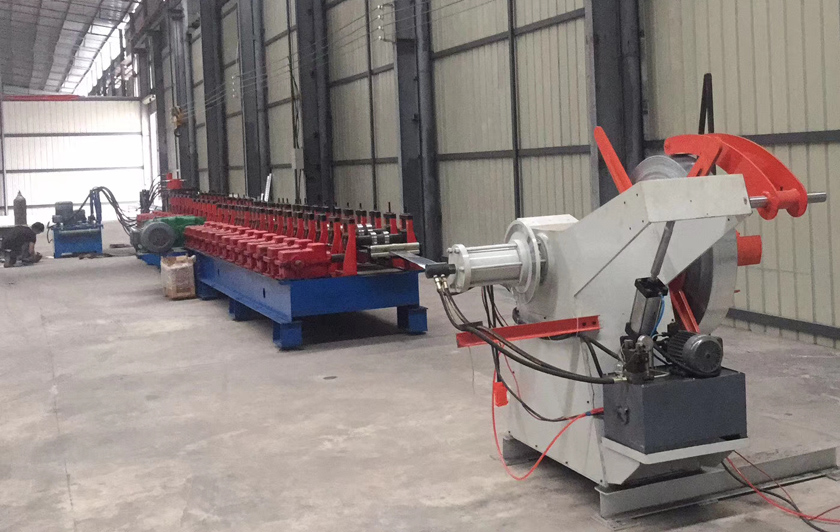

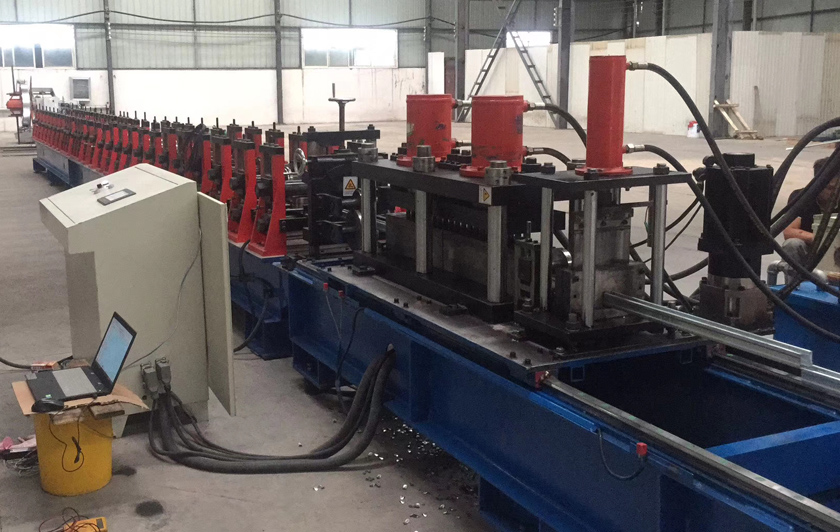

Main Machine of Strut Channel Machine

  1. Roll stand: 26 stations.

  2. Machine structure: pillar stand type

  3. Main power: 30 Kw, variable frequency motor.

  4. Transmission type: gearbox transmission.

  5. Material of the roller: Cr12, quenched, HRC: 56-62

  6. The roller processed by CNC machine with finish machining. The surface adopt finished polishing, the roughness is 0.05mm

  7. Material of the main shaft: 40Cr, quenched, HRB: 225-285

Typical Profile Drawing of Strut Channel Roll Former:



Specification

Technical Specification of Struct Channel Machine

Item

Parameters

Coil thickness (mm)

1.5-2.5

Max speed (m/min)

8

Profile type

21/41 x 41

Roll stand

26

Main power (Kw)

30

Main shaft (mm)

80

Cutter material

Cr12

Cutting accuracy

10±2mm
