Fully Automatic C Purlin Machine with Stacker (5mm)

5.0mm C Purlin Machine with Stacker (NTK-CZ-NS)

It is a customized C Purlin Roll Forming Machine that used to make various C purlins from 2.5mm to 5.0mm, it includes a 10 tons hydraulic uncoiler, leveling station, 6 sets punch unit, fully automatic gearbox driven 5mm C purlin roll former with fly cutter, and automatic stacking machine.

All motors, PLC, control panel of this line adopts Siemens brand.

Fully Automatic C Purlin Roll Forming Machine

The size change of this purlin machine is controlled by PLC and operated on control panel, fully automatic. Also we have other types, such as NTK-CZ-300A fully automatic CZ purlin machine, NTK-CZ-300 semi automatic CZ machine, and NTK-CZ-400 for 400mm/4mm purlin machine.

  1. Raw material: galvanized sheet, black sheet; 2.5-5.0mm

  2. Product size: 80-300/ 40-100/10-20mm (can be customized)

  3. Machine speed: 30-40 m/min (fly cut, with stacker)

Fly Cut Purlin Roll Forming Line Main Components:

10 tons Hydraulic Uncoiler

  1. Type: single head hydraulic uncoiler with coil car

  2. Load capacity: 10T

Servo Motor Feeding 6 Stations Pre-punch

  1. Punch molds: 6*2, it can punch maximum 12 different holes each time.

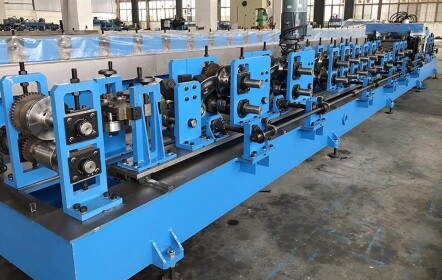

Purlin Main Machine

  1. Roller material: D3 with heat treatment, polishing and galvanizing.

  2. Main motor: Siemens motor

  3. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.

  5. All motors, PLC, control panel are Siemens brand.

Fly Cut

  1. Adopts fly cut, cutting while machine not stop.

  2. Universal cutters for all purlin sizes.

  3. Cutting length, cutting pieces, and punching are controlled by PLC.

C Purlin Stacking Machine

  1. Length: 12 meters or customized

  2. Stacking quantity: Max. 3 pieces per layer

  3. With automatic chain conveyor

As the leading and biggest C&Z Purlin Machine manufacturer in China, on average we have delivered 180-200 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.





Specification

Technical Specification of Customized (NTK-CZ-NS) Purlin Machine

Raw Material Type Galvanized Sheet, Black Sheet
Thickness 2.5-5.0mm
C Purlin Size Web x Flange x Lip 80-300/ 40-100/ 10-20
Z Purlin Size Web x Flange x Lip 80-300/ 40-100/

Performance

Speed 30-40m/min (fly cut)
C & Z Interchange  PLC Control, Fully Automatic
Size Change  PLC Control, Fully Automatic
Uncoiler Type  Single Head Hydraulic
Capacity 10 T

Main Machine

Main Roller Station 18
Main Drive Siemens Motor
Transmission Type Gearbox

Punching & Cutting

Punching Location Pre-Punch, Web/ Flange
Punching Unit 6*2 Sets
Cutter Type Universal Cutter, Fly Cut
