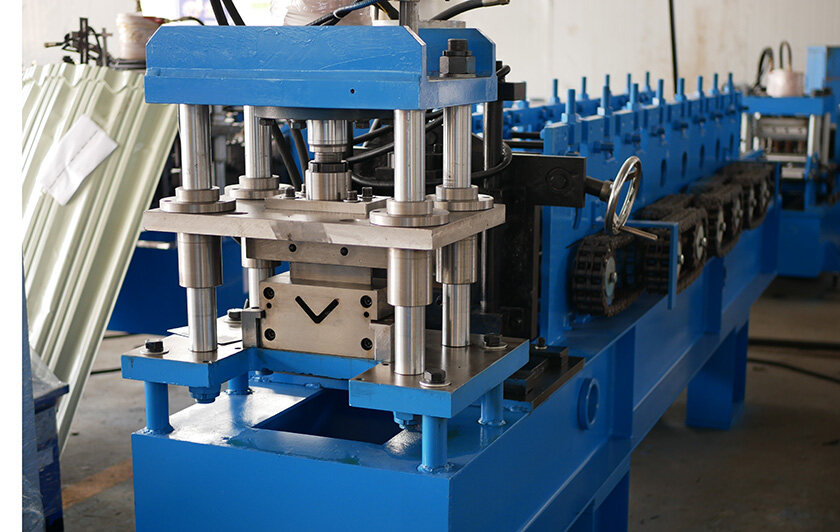

V Channel Roll Forming Machine (65m/min)

V Channel, C Stud, U Track Roll Forming Machine

The high speed V channel , C/U Stud/ Track roll forming machine is used to produce various light gauge steel profiles in high production. Its speed is up to 65m/min including cut.

High Speed V Channel Roll Forming Machine

Controlled by PLC and operated on control panel, the V channel/ C stud/ U track roll forming machine length set is fully automatic.

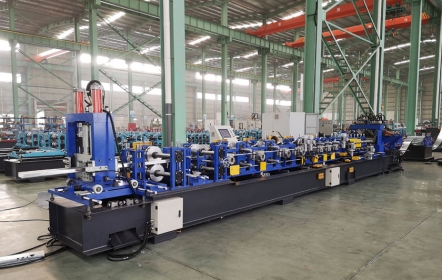

Also we have other type CZU purlin machine, such as NTK-CZ-300A fully automatic CZ purlin machine, NTK-CZ-300 semi automatic CZ machine, and NTK-CZ-400 for 400mm/4mm purlin machine.

  1. Raw material: galvanized sheet,0.7- 1.2mm

  2. Product size: customized

  3. Machine speed: 65 m/min (fly cut)

Fly Cut Channel/ Stud/ Track Roll Former Main Components:

Hydraulic Uncoiler

  1. Type: hydraulic expanding & active decoil

  2. Load capacity: 6T

Channel Main Machine

  1. Roller material: GCr15 with heat treatment, polishing and galvanizing.

  2. Main motor: three-phase asynchronous motor

  3. Length control: controlled by PLC and set on control panel, continuously adjustable.

  4. All motors, PLC, control panel adopts international famous brand.


Technical Specification of Channel/Stud/Track Roll Forming Machine

Raw Material Type Galvanized Sheet, Black Sheet
Thickness 0.7-1.2mm

Speed 65m/min (fly cut)
Size Set PLC Control, Fully Automatic
Uncoiler Type  Hydraulic
Capacity 6 T

Main Machine
Main Roller Station 16
Main Drive Motor
Transmission Type Chain


Cutter Type Fly Cut
