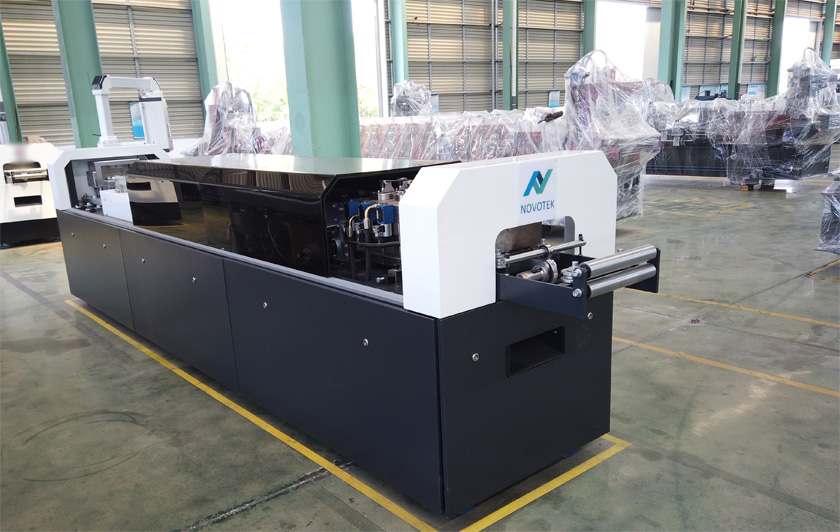

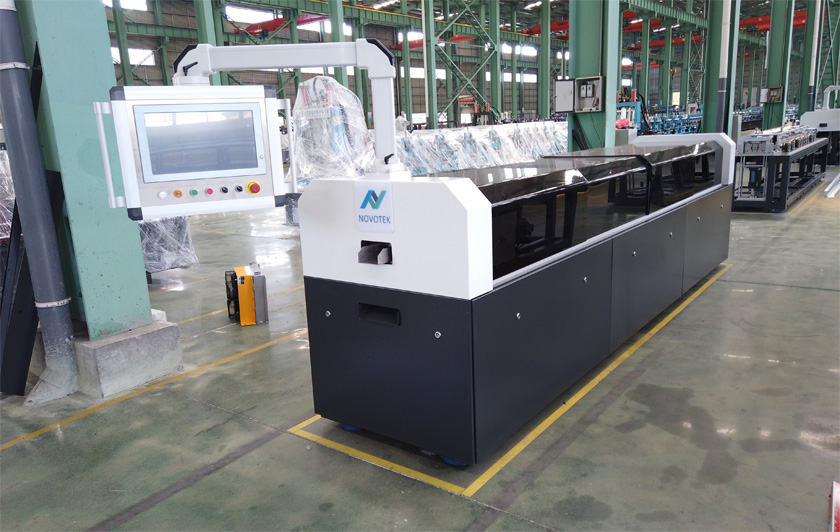

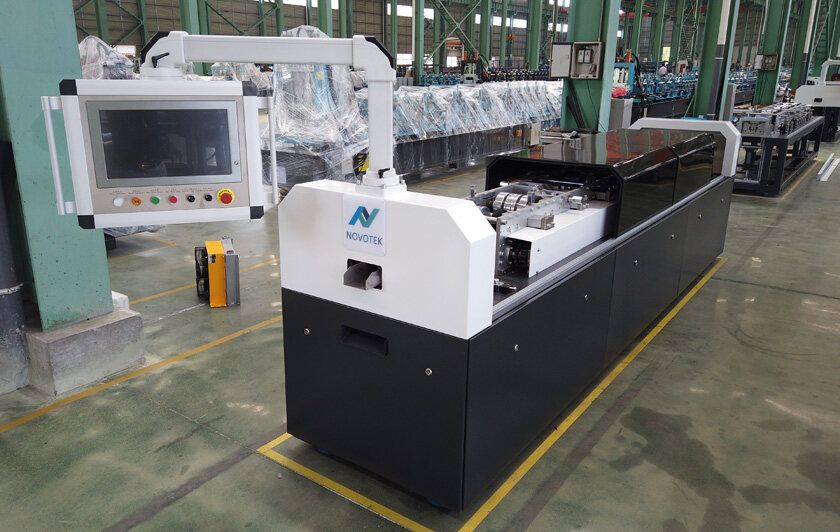

Light Gauge Steel Framing Machine ( Framecad Machine)
NOVOTEK manufactured Light Gauge Steel Framing machine ( framecad machine), and can automatic produce Light Gauge C shape profiles according to the input construction data
With the help of designing software and control software, the machine can automatic running and saving lots of time in drafting, material reporting, data entry, manufacturing, and correcting all the errors.
Steel Framing Machine parameter:
1. Raw material: galvanized sheet, 0.75-1.2mm, 550 Mpa
2. Product size: 89 x 41 x 10mm; 140 x 41 x 10mm
3. Machine speed: Max. 33 m/min (not including cutting and punching)
Light Gauge Steel Villa Machine Main Components:
1. Type: Mechanical Uncoiler, Hydraulic Uncoiler
2. Load capacity: 3T
Main LGS Machine
1. Speed: Max. 33m/min (excluded punching and cutting time)
2. Total weight: 3.5 T
3. Machine size: 5.2m x 1.6m x 1.5m

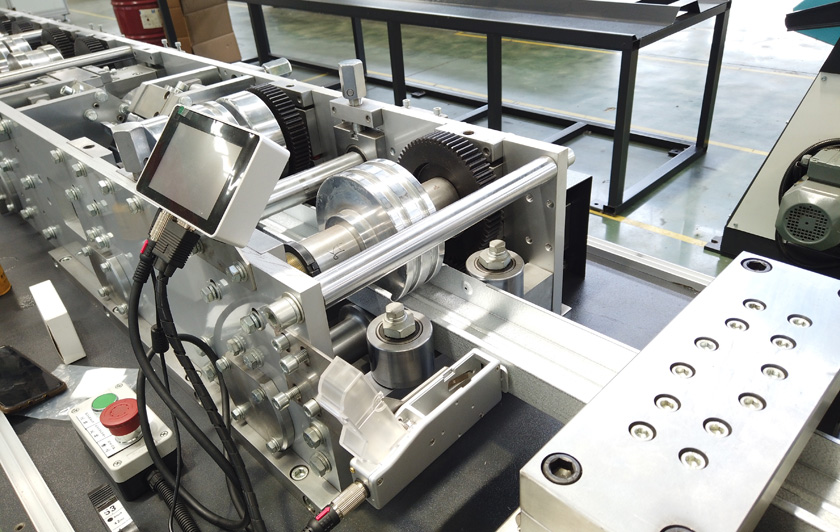

4. Roller stations: 12, including one set roller for purlin flange angle adjustment within 87-95 degree.
5. Drive type: servo motor 5.5Kw with high precision plant gear speed reducer.
6. Roller material: GCr15, numerical control machining with heat treatment and precision grinding. Hardness: HRC55-58

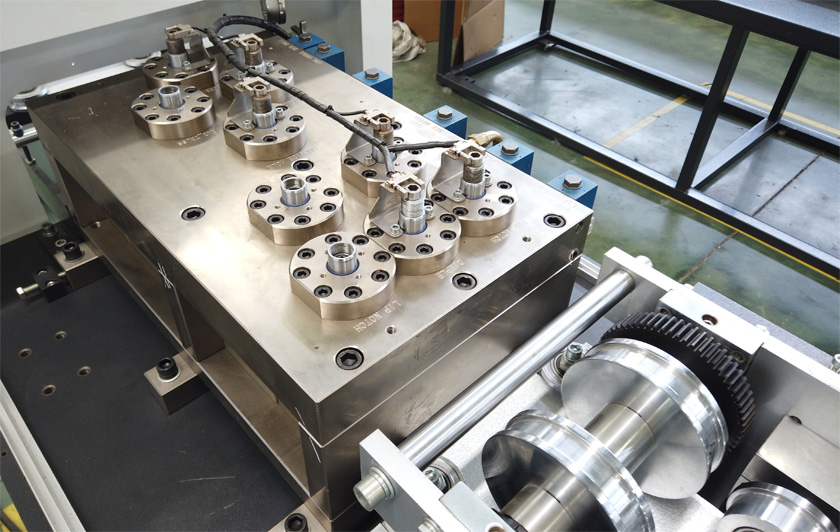

Hydraulic Punching System

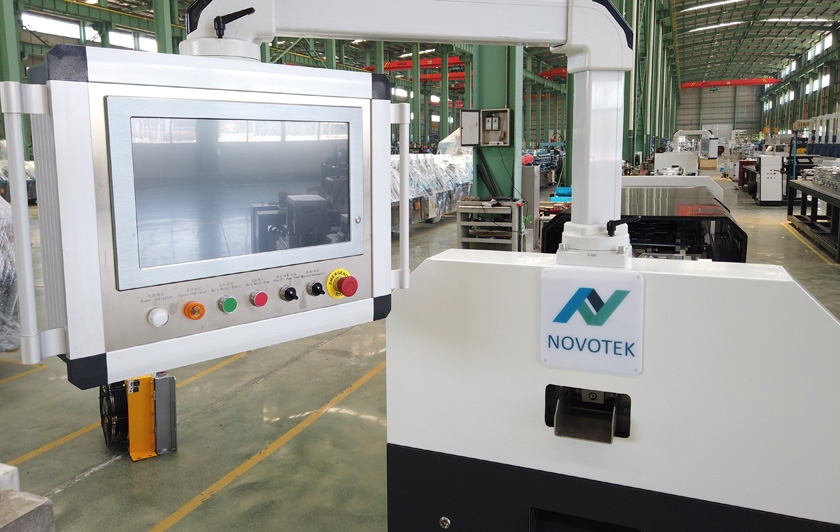

1. The NC control software that installed in control computer will automatically read the BOM data which input through USB or Net, then machine will automatically generate product according designed parameters.
2. Control voltage: 220V, 50Hz
3. Control type: PC with Win8 operation system.
4. PLC brand: Panasonic
5. Relay: Schneider
6. Button: Schneider
7. Hydraulic valve: Rexroth
As the leading and biggest C&Z Purlin Machine manufacturer in China, on average we have delivered 180-200 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.
Technical Specification of NTK-LGS Light Gauge Steel Framing Machine
|Raw Material||Type||Galvanized Sheet|
|NTK-LGS-89||Web x Flange x Lip||89 x 41 x 10|
|NTK-LGS-140||Web x Flange x Lip||140 x 41 x 10|
|Speed||Max. 33m/min (without cutting and punching)|
|Machine Size||5.2 x 1.6 x 1.5m|
|Main Roller Station||12|
|Main Drive||Servo Motor|
Punching & Cutting
|Punching||Pre-Punching and Notching|
|Length Tolerance||+/- 1mm|
|Profile Tolerance||+/- 1mm|
